Description

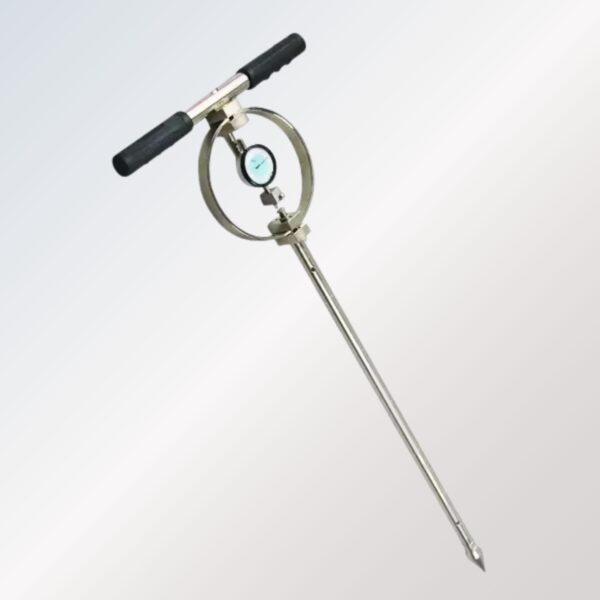

The Proving Ring Penetrometer is a precision soil testing instrument designed to determine the bearing strength and penetration resistance of soils in both field and laboratory applications. Widely used in civil engineering, geotechnical studies, highway construction, and foundation design, this device helps evaluate soil consistency and suitability for load-bearing structures.

It features a finely calibrated proving ring that accurately measures the applied force during penetration. The sturdy penetration cone and smooth plunger operation enable seamless testing even in tough soil conditions. With an easy-to-read dial gauge, operators can record load values and correlating penetration depths with high accuracy and repeatability.

Compact, portable, and built for rugged environments, the Proving Ring Penetrometer ensures efficient on-site soil assessment, making it an essential tool for engineers and quality control professionals.

Key Features

• Accurate measurement using calibrated proving ring

• Suitable for field and lab soil penetration tests

• Easy-to-read dial gauge for precise load readings

• Robust and corrosion-resistant construction

• Portable, lightweight design for convenient site use

• Consistent and repeatable test results

• Complies with industry test standards

Technical Specifications (Adjust to your model)

• Measuring Range: 0–1 kN / 0–2 kN / custom

• Dial Gauge Resolution: 0.01 mm or better

• Penetration Cone Angle: Standard 30°

• Construction: Stainless steel / hardened alloy

• Includes: Proving ring, cone, plunger, carrying case

Applications

• Soil bearing capacity evaluation

• Foundation and subgrade strength testing

• Pavement and embankment analysis

• Geotechnical engineering research

• Field construction quality control
