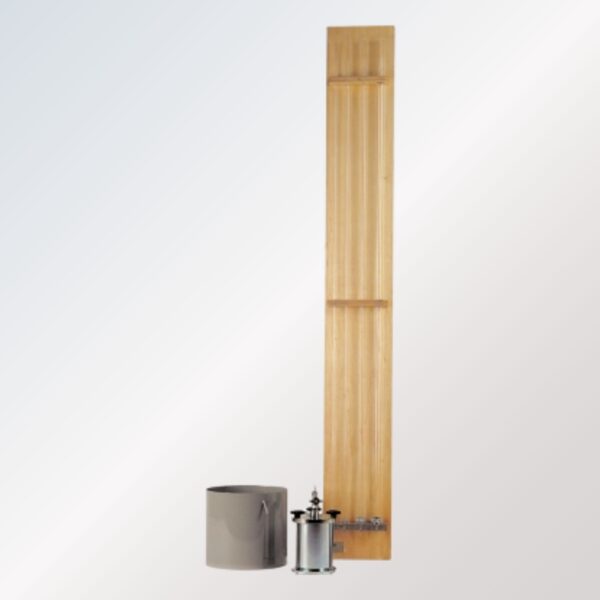

Soil Permeability Apparatus – Efficient Testing of Soil Water Flow Characteristics

The Soil Permeability Apparatus is a highly reliable setup used to determine the permeability (coefficient of permeability) of soil, particularly in clay, silt, and sandy materials. It helps evaluate water flow characteristics through soil, which is crucial for geotechnical design, groundwater studies, dam engineering, and foundation stability assessments.

This apparatus is available in both Constant Head and Falling Head configurations for a wide range of soil types. Sturdy glass or acrylic cylinders, precision valves, and accurate measuring scales ensure consistent results with high repeatability. Designed for laboratory usage, the unit complies with major geotechnical testing standards to support accurate project evaluation.

Compact, durable, and easy to operate, the Soil Permeability Apparatus is an essential instrument for geotechnical engineering labs and construction quality control testing.

Key Features

• Determines soil permeability using constant & falling head methods

• High-quality, corrosion-resistant components

• Accurate measurement of water discharge and hydraulic gradients

• Suitable for both coarse-grained and fine-grained soils

• Stable, leak-proof setup for long-term use

• Complies with ASTM / IS / BS testing standards

• Easy assembly and low maintenance

Technical Specifications (Adjust as per your model)

• Stand with clamp arrangement

• Permeability mould (100 mm diameter or custom)

• Graduated water standpipes / water reservoir

• Porous stones and drainage base

• Valves and tubing for controlled flow

Applications

• Groundwater flow and seepage analysis

• Geotechnical site investigation

• Earth dam and canal lining design

• Foundation and retaining structure assessment

• Soil classification and research studies
