Description

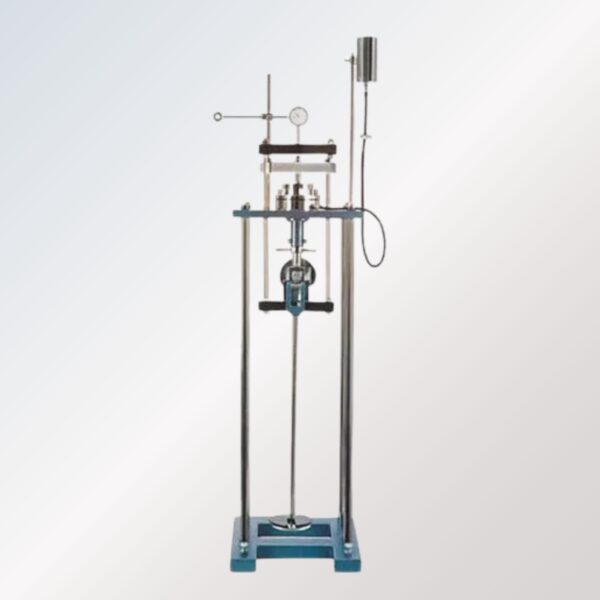

The Single Gang Consolidation Apparatus is a high-precision testing instrument used to determine the compressibility, settlement characteristics, and rate of consolidation of soil under controlled loading conditions. Essential for geotechnical engineering, foundation analysis, and soil mechanics research, this apparatus helps engineers evaluate how soil behaves under long-term static loads—critical for designing safe and stable structures.

Built with a rigid loading frame, smooth lever arm mechanism, and high-quality consolidation cells, the Single Gang Consolidation Apparatus ensures accurate and repeatable test results. It is designed to accommodate standard consolidation rings and includes a water reservoir for saturation, making it suitable for both routine laboratory testing and advanced research. Manufactured as per IS, ASTM, and other global standards, this apparatus delivers dependable performance for studying settlement behavior in clay and cohesive soils.

Key Features

• Determines soil compressibility, settlement, and coefficient of consolidation

• Includes rigid loading frame, lever system, and precision consolidation cell

• Provides accurate, stable, and repeatable load application

• Suitable for testing clay, silt, and cohesive soil samples

• Built with durable, corrosion-resistant components for long-term lab use

• Compatible with standard consolidation rings and porous stones

• Ideal for geotechnical labs, research institutes, and construction QC departments

• Conforms to IS:2720, ASTM D2435 & international standards
