Description

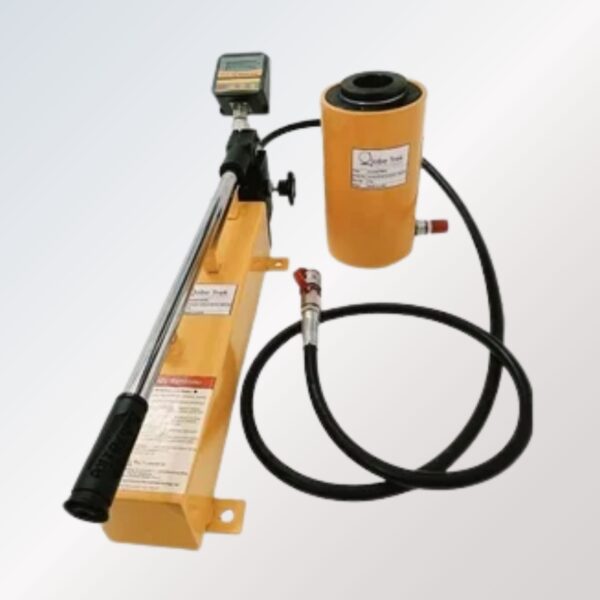

The Rock Bolt Pull Out Test Apparatus is a precision-engineered testing system designed to evaluate the holding capacity and anchorage performance of rock bolts, soil nails, and ground anchors. It is widely used in tunneling, mining, slope stabilization, and underground construction projects to ensure safe and effective ground support installation.

This robust apparatus applies controlled tensile load to the installed bolt and accurately measures pull-out resistance under real field conditions. With a strong hydraulic jack, high-accuracy load gauge, and durable reaction frame, it delivers dependable and repeatable results that meet industry standards.

Key Features

• High Load Capacity
  Capable of delivering tensile forces required for rock bolt performance testing.

• Accurate Load Measurement
  Equipped with calibrated load gauge/pressure transducer for precise readings.

• Field-Friendly & Portable
  Compact and rugged design ensures easy setup at job sites.

• Durable Reaction Frame
  Provides stable test setup for reliable testing even in harsh environments.

• Hydraulic Operation
  Smooth and controlled loading mechanism for consistent results.

• Standards Compliant
  Suitable for international testing practices in geotechnical engineering.

Applications

• Pull-out strength testing of rock bolts and anchors

• Verification of installed bolt capacity in tunnels and mines

• Quality control for slope stabilization works

• Retaining wall and underground excavation projects

• Geotechnical investigation and research
