Description

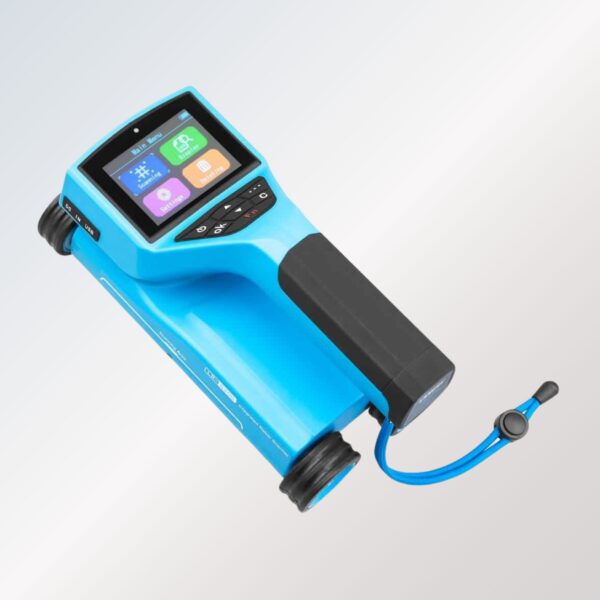

Rebar Scanner is a high-performance non-destructive testing (NDT) instrument designed to accurately locate reinforcing bars, measure concrete cover thickness, and estimate rebar diameter within reinforced concrete structures. Using advanced electromagnetic sensing technology, the scanner quickly detects embedded reinforcement without damaging the concrete, making it an essential tool for structural inspections, renovation projects, and quality control.
The instrument provides real-time scanning with a high-resolution display, allowing users to identify the position, spacing, depth, and size of reinforcement bars. It is widely used by civil engineers, contractors, consultants, and inspection agencies for evaluating reinforced concrete structures before drilling, coring, cutting, or structural modifications.
Key Features
- Non-destructive detection of reinforcing steel
- Accurate concrete cover thickness measurement
- Rebar location and spacing detection
- Estimation of reinforcement bar diameter
- High-resolution color display
- Real-time scanning and graphical results
- Built-in memory for data storage
- USB/Bluetooth data transfer (model dependent)
- Lightweight, portable, and easy to operate
- Suitable for field and laboratory applications
Applications
- Reinforced Concrete Inspection
- Building Condition Assessment
- Bridge and Flyover Inspection
- Tunnel and Metro Projects
- Precast Concrete Manufacturing
- Structural Audits
- Concrete Coring and Drilling Preparation
- Quality Control Laboratories
- Infrastructure Maintenance
Technical Specifications
| Parameter | Specification |
|---|---|
| Measurement Type | Rebar Detection & Concrete Cover Measurement |
| Detection Technology | Electromagnetic Pulse Induction |
| Concrete Cover Range | Up to 180 mm (Model Dependent) |
| Rebar Diameter Estimation | Supported |
| Display | High-Resolution Color LCD |
| Data Storage | Internal Memory |
| Communication | USB / Bluetooth (Optional) |
| Power Supply | Rechargeable Lithium Battery |
| Operating Mode | Real-Time Scan & Measurement |
Benefits
- Prevents accidental damage to reinforcement during drilling and cutting
- Accurately measures concrete cover thickness
- Detects reinforcement layout quickly and efficiently
- Supports structural inspection and rehabilitation projects
- Improves quality control during construction
- Generates digital reports for documentation
- Saves time and reduces inspection costs
