Description

The Plate Load Test Apparatus is a crucial geotechnical testing system designed to evaluate the bearing capacity and settlement characteristics of soil directly at the construction site. This test helps determine the safe load a soil foundation can withstand, ensuring stability for structures like highways, railways, foundations, and embankments.

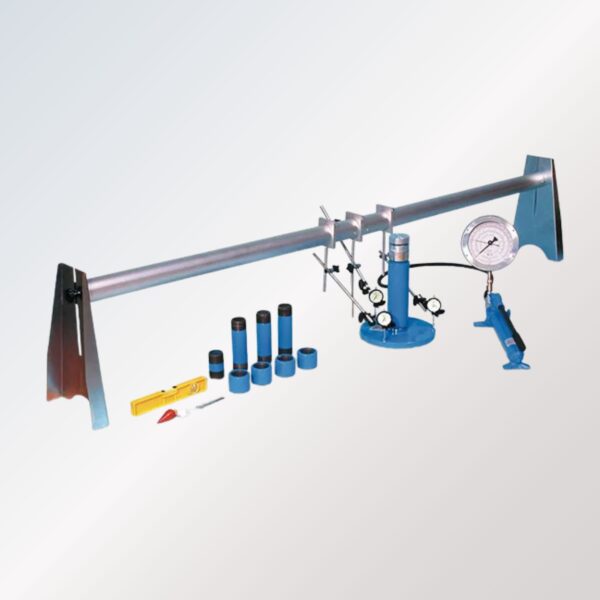

Our Plate Load Test setup includes a high-strength loading jack, calibrated pressure gauges, robust steel bearing plates, and a secure reaction arrangement for accurate load application. It provides precise deflection readings under incremental load conditions, making it ideal for real-time field assessment of soil performance.

Engineered with durable components and easy-to-handle design, the apparatus delivers reliable, repeatable results for geotechnical engineers and construction quality control professionals.

Key Features

• Accurate measurement of soil bearing capacity and settlement

• Heavy-duty steel plates for stable load distribution

• High-precision hydraulic jack with calibrated gauge

• Suitable for field testing of foundations and subgrade conditions

• Easy setup and safe testing operations at construction sites

• Conforms to IS, ASTM & other international testing standards

Applications

• Highway & pavement foundation evaluations

• Real-time soil bearing capacity assessment

• Infrastructure development & foundation design

• Civil engineering and geotechnical quality control
