Description
Penetration Strength Tester is a portable non-destructive testing (NDT) instrument designed to evaluate the compressive strength of in-place concrete using the penetration resistance method. The instrument measures the penetration depth of a hardened steel test nail driven into the concrete surface and accurately correlates the penetration depth with the concrete’s compressive strength using standardized strength conversion curves.
The tester operates on a lever-operated spring loading mechanism, where a working spring is compressed to store energy and then instantly releases it to drive the measuring nail into the concrete. This simple yet reliable method enables rapid, economical, and repeatable strength assessment while causing only minimal surface damage.
Designed for construction sites, quality control laboratories, and engineering inspections, the Penetration Strength Tester provides a quick and effective solution for evaluating in-situ concrete strength without the need for destructive core sampling.
Key Features
- Non-destructive evaluation of in-place concrete strength
- Penetration resistance test method
- Lever-operated spring loading mechanism
- Precision digital penetration depth measurement
- Fast and reliable field testing
- High-strength hardened steel test nails
- Portable and lightweight design
- Rugged construction for on-site use
- Easy operation with minimal maintenance
- Accurate and repeatable test results
Applications
- In-Situ Concrete Strength Assessment
- Building Construction
- Bridges and Flyovers
- Industrial Structures
- Tunnels and Retaining Walls
- Infrastructure Projects
- Construction Quality Control
- Civil Engineering Laboratories
- Structural Inspection and Rehabilitation
Technical Specifications
| Parameter | Specification |
|---|---|
| Test Method | Penetration Resistance Method |
| Loading Force | 1000 ± 8 N |
| Working Stroke | 20 ± 0.1 mm |
| Measuring Gauge Range | 20 mm |
| Resolution | 0.01 mm |
| Test Nail Length | 40 mm |
| Test Nail Diameter | 3.5 / 3.1 mm |
| Operation | Manual Lever-Operated |
| Standards | ASTM C803 / ASTM C803M, BS 1881-207 |
Standard Accessories

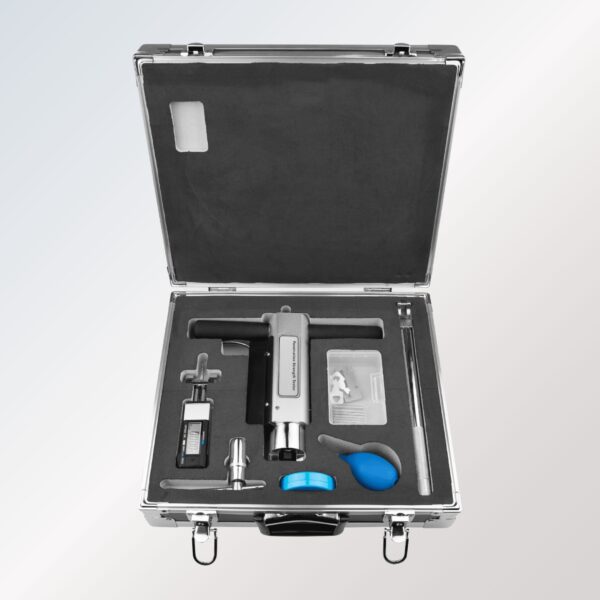

- Main Testing Unit
- Digital Penetration Depth Gauge
- Measuring Nail Gauge
- Hardened Steel Test Nails
- Loading Lever
- Tightening Wrench
- Heavy-Duty Carrying Case
Benefits
- Fast on-site concrete strength evaluation
- Minimal damage to the concrete surface
- Eliminates the need for core extraction in many applications
- Accurate and repeatable measurements
- Lightweight and easy to transport
- Suitable for laboratory and field testing
- Improves construction quality control and inspection efficiency
