Description
Globetrek Engineering Corporation is one of the Few Indian organizations which constantly working with the Goal to developed Most Advance Testing Equipment’s in India which match the International Quality and Reference Standards . The American Society for Testing and Materials, or famously knows as ASTM, is an organization that oversees the standards governing the techniques and methodology used to develop the materials, products, services, and systems that make up today’s market. In the world of particle size analysis, the ASTM E11 standard is one of the most prominent standards used throughout the industry , While working with International clients Team Globetrek have developed Test Sieves which fulfill the requirement of ASTM E11 Standard

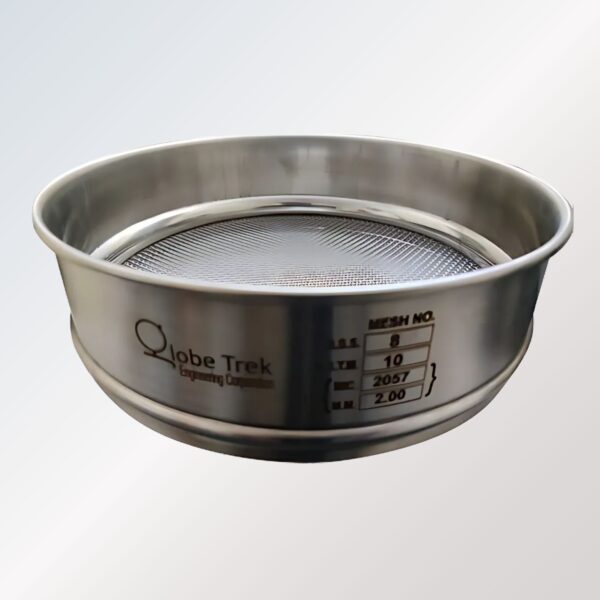

Our GT-505 model series has been manufacture to comply ASTM E11 Standard to gives you a better chance of achieving accurate , repeatable analysis results. Specialty of this SS Sieve is lies in its MOC i.e. Frame and Mesh both made up of Stainless Steel 316 material .
Globetrek GT-505 SS 316 Test Sieves can be manufacturer from 4 Inches , 8 Inches , 12 Inches to 18 Inches Diameter and Mesh sizes will be from 4.75 to 25 micron .
Globetrek GT-505 Test Sieves are being highly demanded by Pharma companies and chemical manufacturers & importers in USA , UK , Europe , and suppliers in Africa , Tanzania .
| B.S.S (410/1969) | ASTM (11-70) | MM I.S. (469/1972) | MICRONS |
| 3 | 4 | 4.75 | – |
| 4 | 5 | 4.00 | 4000 |
| 5 | 6 | 3.35 | 3353 |
| 6 | 7 | 2.80 | 2812 |
| 7 | 8 | 2.36 | 2411 |
| 8 | 10 | 2.00 | 2057 |
| 10 | 12 | 1.70 | 1680 |
| 12 | 14 | 1.40 | 1405 |
| 14 | 16 | 1.18 | 1204 |
| 16 | 18 | 1.00 | 1003 |
| 18 | 20 | 0.850 | 850 |
| 22 | 25 | 0.710 | 710 |
| 25 | 30 | 0.600 | 600 |
| 30 | 35 | 0.500 | 500 |
| 36 | 40 | 0.425 | 420 |
| 44 | 45 | 0.355 | 355 |
| 52 | 50 | 0.300 | 300 |
| 60 | 60 | 0.250 | 250 |
| 72 | 70 | 0.212 | 210 |
| 85 | 80 | 0.180 | 180 |
| 100 | 100 | 0.150 | 150 |
| 120 | 120 | 0.125 | 120 |
| 150 | 140 | 0.106 | 105 |
| 170 | 170 | 0.090 | 90 |
| 200 | 200 | 0.075 | 75 |
| 240 | 230 | 0.063 | 63 |
| 300 | 270 | 0.053 | 53 |
| 350 | 325 | 0.045 | 45 |
| 400 | 400 | 0.037 | 37 |
| 500 | 500 | 0.025 | 25 |
Certification & Calibration : Calibration Certificate from NABL Accredited Laboratory will be provided at extra cost .
