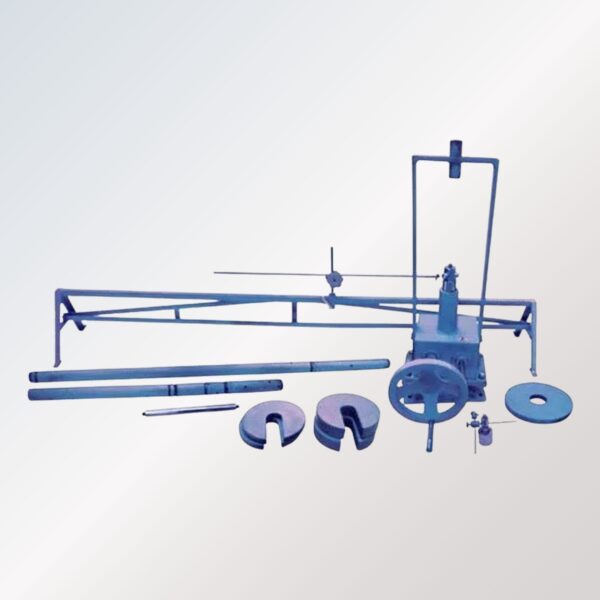

Field CBR Testing Machine – On-Site Soil Strength & Subgrade Evaluation

The Field CBR Testing Machine is a rugged and portable system designed to determine the California Bearing Ratio (CBR) of soil directly at field locations. Ideal for highway construction, embankment development, railway track beds, and pavement foundation engineering, this equipment enables engineers to assess subgrade load-bearing capacity without transporting samples to a laboratory.

Built with a sturdy mechanical loading system and accurate proving ring setup, the field CBR apparatus delivers reliable penetration readings even in remote testing environments. Easy to assemble, transport, and operate, it ensures fast decision-making for earthwork and compaction quality control at construction sites.

Whether you’re validating compaction results or approving site soil for structural load applications, the Field CBR Testing Machine provides dependable data to support safe and efficient infrastructure development.

Key Features

• Portable design for convenient on-site testing

• Manual mechanical loading for field accuracy

• Proving ring with dial gauge for precise CBR readings

• Strong, corrosion-resistant frame for outdoor usage

• Ideal for soaked & unsoaked field evaluations

• Conforms to ASTM/BS/IS CBR test standards

• Quick setup and easy operation

Technical Specifications (Adjust as per your model)

• Load Capacity: 50 kN / 10,000 lbf

• Penetration Rate: Standard 1.27 mm/min by mechanical jack

• Measuring Instruments: Proving Ring & Dial Gauge

• Accessories: Penetration piston, extension rods, surcharge weights, carrying case

Applications

• Road & pavement subgrade assessment

• Railway and airport soil evaluation

• Embankment and earthwork QC

• Field compaction verification

• Geotechnical investigation projects
