Description

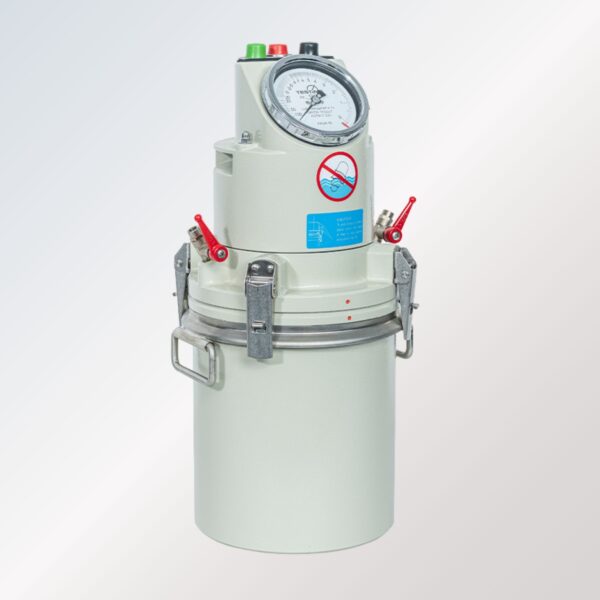

The Air Entrainment Meter is a precision testing instrument used to determine the percentage of entrained air in freshly mixed concrete. Air content is a critical parameter that directly affects the durability, workability, and freeze-thaw resistance of concrete. The meter operates on the pressure method and provides fast, accurate, and reliable measurements for quality control in laboratories and construction sites. It is widely used in accordance with ASTM C231 Type B and EN 12350-7 standards.
Key Features
- 8-Litre Capacity aluminum pressure chamber for concrete testing.
- Pressure Gauge Type design for quick and accurate air content measurement.
- Direct Reading Dial with clear graduations for easy interpretation.
- Integrated Hand Pump for efficient pressure generation.
- Heavy-Duty Clamping System ensures airtight sealing during testing.
- Suitable for Field and Laboratory Use.
- Lightweight and Portable Construction for easy transportation.
- Corrosion-Resistant Components for long service life.
- Can Also Be Used for Unit Weight Determination of fresh concrete and aggregates.
- Complies with ASTM C231 Type B, AASHTO T152, and EN 12350-7 Standards.
Applications
- Concrete Quality Control
- Ready-Mix Concrete Plants
- Construction Sites
- Civil Engineering Laboratories
- Research and Testing Institutes
- Infrastructure and Highway Projects
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | 8 Litres |
| Test Method | Pressure Method |
| Air Content Range | 0–100% |
| Resolution | Up to 0.1% |
| Material | Aluminum Alloy |
| Standards | ASTM C231 Type B, EN 12350-7, AASHTO T152 |
| Operation | Hand Operated |
