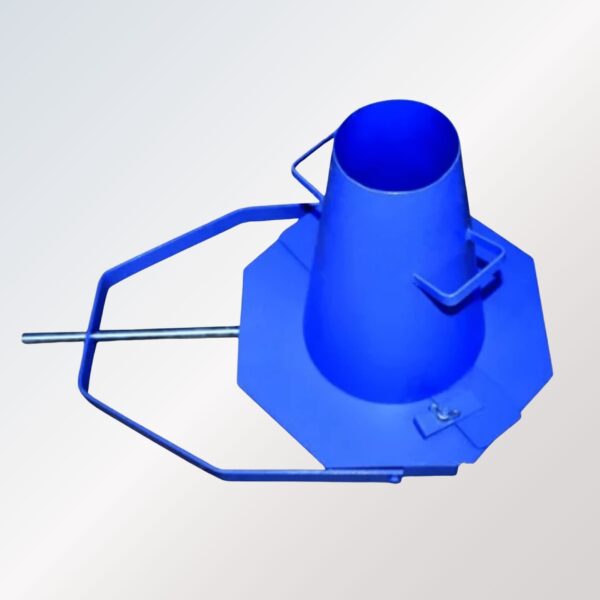

The Slump Cone apparatus is basically for conducting the slump test essentially consists of a metallic mould in the form of a frustum of a cone having the internal dimensions as : Bottom diameter : 20 cm, Top diameter : 10 cm, Height : 30 cm and the thickness of the metallic sheet for the mould should not be thinner than 1.6 mm.
The Slump Cone apparatus is basically for conducting the slump test essentially consists of a metallic mould in the form of a frustum of a cone having the internal dimensions as : Bottom diameter : 20 cm, Top diameter : 10 cm, Height : 30 cm and the thickness of the metallic sheet for the mould should not be thinner than 1.6 mm.
U Shape Box Apparatus with inside smooth walls, equipped of a flow obstacle formed by four vertical reinforcement bars. The bars have dia. 10mm and the light between them is 35mm. A gate in guillotine form splits the vertical portion of the box from the horizontal one. Stainless edge, 300mm long, galvanized steel, to level the concrete.
Specifications : It is designed to carry a load of 140 kg. The apparatus consists of a motor fitted with a variable pitch pulley housed in a cabinet. The vibrations are imparted by means of off-balance masses rotating on a shaft of a vibrator clamped to the underside of the table top.
