Description

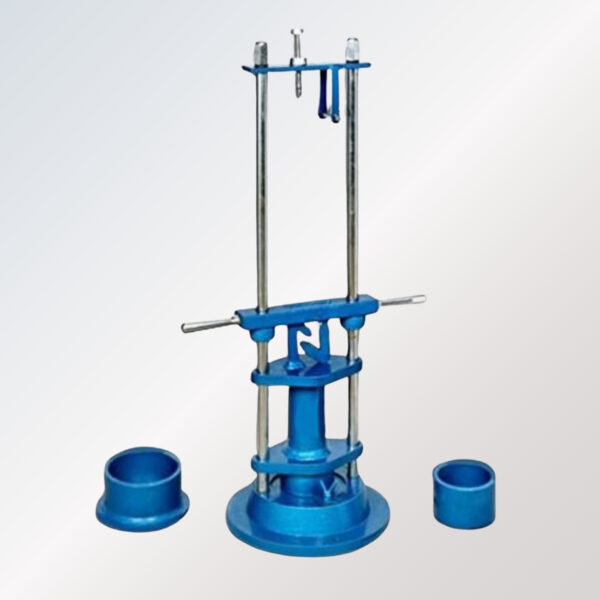

The Aggregate Impact Testing Apparatus is a reliable and durable instrument designed to determine the impact value of aggregates. This test helps evaluate the toughness and resistance of aggregates to sudden shocks or impacts, which is an essential property in road construction, pavement design, and concrete production.
Product Features:
Heavy-duty frame with rigid construction for long service life
Equipped with a circular metal base, vertical guide, and a hammer of standard weight (13.75 ± 0.25 kg)
Hammer drop height: 380 ± 5 mm, guided to fall freely onto the specimen
Supplied with a cylindrical cup, measure, and tamping rod
Simple to operate, suitable for laboratory and field testing
Technical Specifications:
Hammer Weight: 13.75 ± 0.25 kg
Drop Height: 380 ± 5 mm
Cup Size: 102 mm diameter x 50 mm depth
Measuring Cylinder: 75 mm diameter x 50 mm depth
Stand Material: Cast iron, powder-coated finish for durability
